Metal Powder Injection Molding (MIM)

Metal Injection Molding

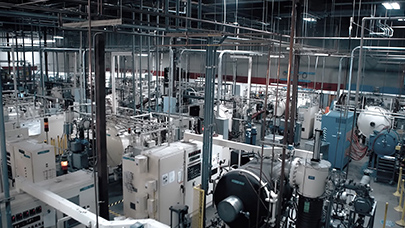

Boasting advanced MIM production lines, we realize complex-shaped metal components with ±0.008mm precision. Integrating powder mixing, injection molding, debinding and sintering, it handles intricate geometries hard for traditional machining. Adaptable to stainless steel, titanium alloy and other materials, it’s ideal for medical devices, aerospace parts and electronic components. Backed by custom design support and strict quality control, we deliver high-performance, cost-effective solutions for both prototypes and mass production.

MIM: The Right Choice for Intricate Parts

Use the following criteria to determine whether Metal Injection Molding is suitable for your component.

Ideal Part Characteristics	Small, intricate and repeatable components.
Complexity	Internal holes, threads and shapes that are costly to machine.
Production Fit	Best considered when production volume supports tooling investment.
Comparison Focus	Compare complexity, material waste, part size and volume economics.

Consult an MIM Specialist →

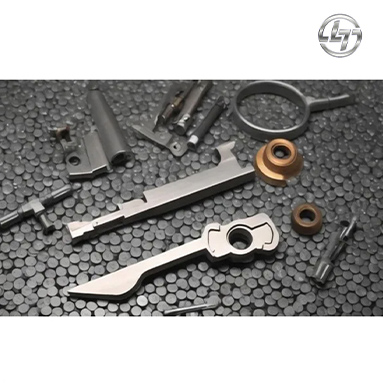

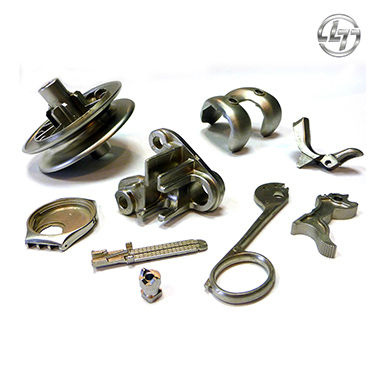

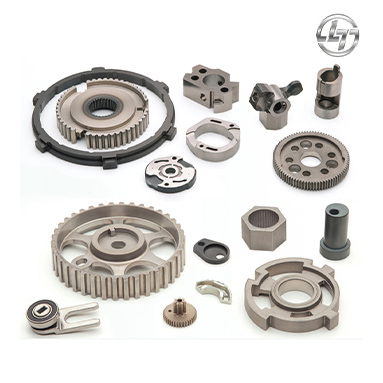

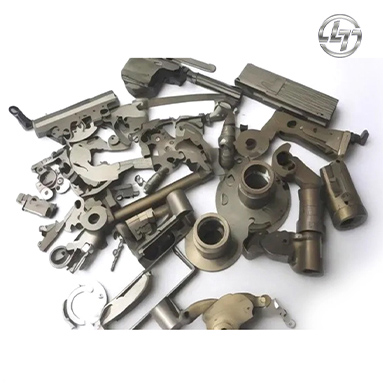

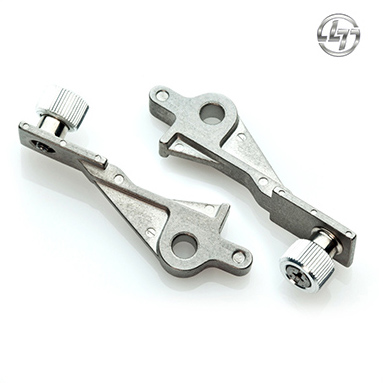

Sample Display

This is a text.This is a text.This is a text.This is a text.This is a text.This is a text.This is a text.This is a text.This is a text.This is a text.This is a text.This is a text.This is a text.This is a text.This is a text.This is a text.This is a text.

Application industry: Aerospace

Application Field

The applications of MIM and PM cover fields such as automotive and automotive electronics, aerospace, medical equipment, electronics and telecommunications, industrial machinery and automation, as well as energy and rough manufacturing. They achieve high output, material utilization, and strict size/mechanical performance control through high‑strength small components, complex profile parts, wear‑resistant and heat‑resistant components, and other scenarios.

Automotive Field
Aerospace Field
Medical Field
Telecommunications Field
Industrial Machinery Field
Consumer Electronics

Product Parameters

Product name	Metal Injection Molding & Powder Metallurgy
Dimensional Tolerance	+0.02mm(standard),+0.01 mm (high-precision)
Minimum Wall Thickness	0.3mm
Mimum Hole Diameter	0.5mm
Surface Roughness (Ra)	Ra 0.8-3.2 um（as-sintered），Ra 0.2-1.6 um（post-polished）
Density (MIM)	=95% of theoretical density
Part Weight Range	0.1g-500g
Max Part Size	120mm×80mm×40mm
Material Hardness (HRC)	20-60 HRC（depending on material & heat treatment)

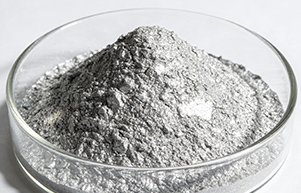

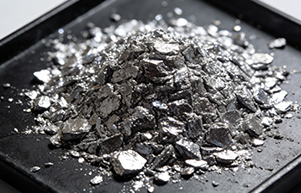

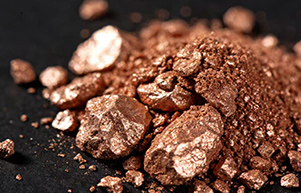

Material Type

Stainless Steel Series

304, 304L, 316, 316L, 321, 17-4PH(AMS 5633/ UNS S17400）, 15-5PH, 440C, 630, SUS304, SUS316

Wear Resistant Alloy Series

15-5 PH, Cu Ni based, iron-based heat-resistant powder metallurgy materials, 20-4/15-5 PH, Cu ETP, Cu OF, CuCrZr, Cu NiSi

Copper Based And Copper Alloy Systems

H62, H59, C260/C385, H62 (UNS C12200), H59, H68, H90, C11000 (electrolytic copper), C260/C26000 (cast copper) C33000

Product Parameters

Process Type	Description	Applicable Materials	Pupose Of Processing
Electroless Rickel Plating	Deposition Of nickel phosphorus alloy layer on metal surface through chemical reaction without the need for electricity	Steel,copper and copper alloys,aluminum and aluminum alloys,stainless steel,titanium alloys, etc	Improve wear resistance, corrosion resistance,and surface hardness
Pvd Coating	Vaporize the coating material in a vacuum ervironmert and deposit it on the surface of the workpiece to form a thin film	High speed steel, hard alloy, stainless steel,titanium alloy, ceramics, etc	Sigrificartly improve surface hardness, wear resistant, high temperature resistance, and reduce friction coefficient
Electropolishing	Using electrochemical principles to anodic dissolve metal surfaces and obtain smooth surfaces	Stainless steel, copper and copper alloys, aluminum and aluminum alloys, titanium alloys, etc	Remove surface burrs and oxide layers, improve surface smoothness and reflectivity
Steam Treatmert	Place the workpiece in a high-temperature steam enMironmert to form a dense oxide film on the metal surface	Carbon steel, cast iron and some alloy steels (such as bearing steel)	Improve surface wear resistance, corrosion resistance, and lubricity
Nitriding / Nitrocarburizing	At a certain temperature, nitrogen atoms infiltrate the metal surface to form a nitride hardened layer	Carbon steel, alloy steel, stainless steel, mild steel, cast iron, etc	Significantly improve surface hardness, wear resistance, and fatigue strength
Zn Ni Electroplating	Deposition of zinc nickel alloy coating on metal surface after power on	Steel, cast iron, aluminum alloy, etc. (pre-treatmert requred)	Good wear resistance and decorative properties,suitable for automotive parts,fasteners, etc
