Casting & Forging

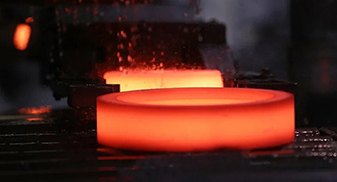

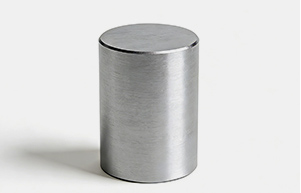

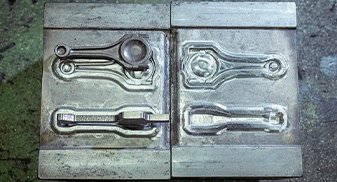

A high-temperature metal forming process (above recrystallization temp) for ductile metals. Applies extreme pressure to shape billets, enhancing strength/density via grain refinement. Produces durable, load-bearing components (gears, shafts) with excellent mechanical properties, ideal for high-stress industrial applications.

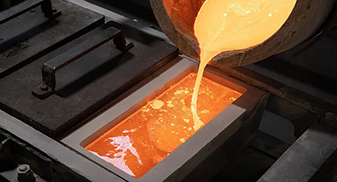

Sand Casting

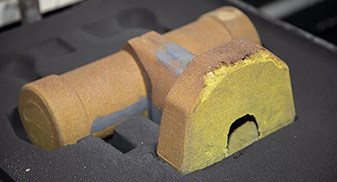

A versatile casting method using sand molds for complex metal parts. Molten metal pours into sand cavities; molds break post-solidification. Cost-effective for low-to-medium batches, accommodates large sizes/intricate designs. Suits ferrous/non-ferrous metals, widely used in machinery and automotive components.

Investment Casting

A precision process: wax patterns form ceramic shells, wax melts out, molten metal fills. Delivers tight tolerances, smooth surfaces, and intricate details (thin walls, complex geometries). Ideal for high-precision parts (aerospace, medical) in stainless steel, superalloys, and non-ferrous metals.

Die Casting

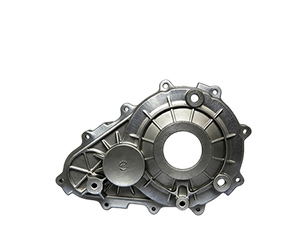

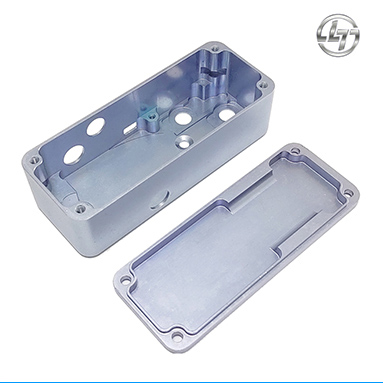

High-pressure injection of molten non-ferrous metals (aluminum, zinc) into steel dies. Enables mass production of complex, dimensionally accurate parts with fine surface finishes. Offers high efficiency, material savings, and excellent repeatability—key for automotive, electronics, and consumer goods components.

Product Technology	Forging & Casting
Dimensional Tolerance	Forging: +0.05 mm (precision forging), +0.1 mm (open die forging); Casting: +0.1 mm (investment casting), +0.2 mm (die casting), +0.5 mm (sand casting)
Mininum Wall Thickness	1.5 mm (forging), 0.8 mm (investment casting), 1.2 mm (die casting)
Surface Roughness (Ra)	Ra 3.2-6.3 um (forged), Ra 1.6-3.2 umn (investment casting), Ra 3.2-6.3 um (die casting)
Part Weight Range	0.1 kg -500 kg (forging),0.05 kg-300 kg(casting)
Max Part Size	800 mm x 600 mm x 400 mm (forging), 1000 mm x 800mm x 600 mm (casting)
Material Hardness (HRC)	25-60 HRC (forged),18-50 HRC (cast, depending on heat treatment)
Density & Mechanical Properties	Forging: =98% theoretical density, tensile strength =800 MPa; Casting:=90%theoreticaldensity,tensilestrength =500 MPa
Hole Position Tolerance	+0.05 mm (forging), +0.1 mm (investment casting), +0.2 mm (die casting)

Product Technology

Forging & Casting

Dimensional Tolerance

Forging: +0.05 mm (precision forging), +0.1 mm (open die forging);
Casting: +0.1 mm (investment casting), +0.2 mm (die casting), +0.5 mm (sand casting)

Mininum Wall Thickness

1.5 mm (forging), 0.8 mm (investment casting), 1.2 mm (die casting)

Surface Roughness (Ra)

Ra 3.2-6.3 um (forged), Ra 1.6-3.2 umn (investment casting), Ra 3.2-6.3 um (die casting)

Part Weight Range

0.1 kg -500 kg (forging),0.05 kg-300 kg(casting)

Max Part Size

800 mm x 600 mm x 400 mm (forging), 1000 mm x 800mm x 600 mm (casting)

Material Hardness (HRC)

25-60 HRC (forged),18-50 HRC (cast, depending on heat treatment)

Density & Mechanical Properties

Forging: =98% theoretical density, tensile strength =800 MPa; Casting:=90%theoreticaldensity,tensilestrength =500 MPa

Hole Position Tolerance

+0.05 mm (forging), +0.1 mm (investment casting), +0.2 mm (die casting)

Surface Treatment	Description	Materials	Purpose
Polishing and Polishing	Remove surface defects with grinding tools	Almost all metals	Remove burrs and scratches to improve surface smoothness
Spraying	Using pressure to atomize liquid coating and spray it onto the surface of the workpiece	Various substrates such as metal,plastic,wood, stone, etc	Protect the substrate from corrosion and aging
Hot-dip Galvanizing	Immerse the work piece into molten zinc solution	ron based materials such as carbon steel and cast iron	Provide long-term cathodic protection andsignificantly improve corrosion resistance
Electroplating	Electrify to reduce and deposit metal ions on the surface of the workpiece	Steel, copper and copper alloys, aluminumand aluminum alloys, zinc alloys, etc	Improve corrosion resistance and wear resistance
Phosphating	Chemical reaction occurs between workpiece and phosphating solution	Metals suchas steel, aluminum and aluminum alloys, zinc alloys, etc	Enhance the adhesion of subsequent coatings
Surface Quenching	By rapidly heating the surface ofthe work-piece and rapidly cooling it down	Medium carbon steel, medium carbon alloy steel, castiron, etc	Significantly improve the surface hardness of the workpiece

Surface Treatment

Description

Materials

Purpose

Polishing and Polishing

Remove surface defects with grinding tools

Almost all metals

Remove burrs and scratches to improve surface smoothness

Spraying

Using pressure to atomize liquid coating and spray it onto the surface of the workpiece

Various substrates such as metal,plastic,wood, stone, etc

Protect the substrate from corrosion and aging

Hot-dip Galvanizing

Immerse the work piece into molten zinc solution

ron based materials such as carbon steel and cast iron

Provide long-term cathodic protection andsignificantly improve corrosion resistance

Electroplating

Electrify to reduce and deposit metal ions on the surface of the workpiece

Steel, copper and copper alloys, aluminumand aluminum alloys, zinc alloys, etc

Improve corrosion resistance and wear resistance

Phosphating

Chemical reaction occurs between workpiece and phosphating solution

Metals suchas steel, aluminum and aluminum alloys, zinc alloys, etc

Enhance the adhesion of subsequent coatings

Surface Quenching

By rapidly heating the surface ofthe work-piece and rapidly cooling it down

Medium carbon steel, medium carbon alloy steel, castiron, etc

Significantly improve the surface hardness of the workpiece
